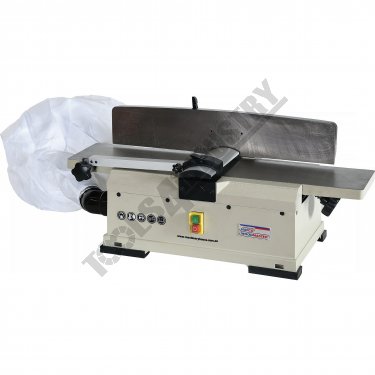

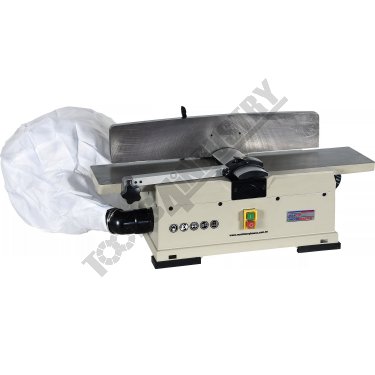

PJ-6B Bench Planer Jointer 153mm Width Capacity

Description

The PJ-6B Planer/Joiner is perfectly designed for all those light to medium duty applications. This unique jointer comes with a 730mm long cast iron table and a 580 x 110mm adjustable tilting fence that allows the operator many options to pane timber effortlessly at the desired angle.

This little planer has a very generous 153mm maximum cut width, and it is mainly constructed from cast iron material to provide ample rigidity, and helps dramatically reduce vibration when under load. The two HSS cutting blades are powered by a 1.5hp 240V motor, and spins the blades at a very impressive 10000rpm. Another great feature that's supplied standard with this machine is the unique built-in fan with dust chute and bag system to collect its own timber waste.

The PJ-6B Planer is perfect for when a portable compact machine is needed for all those one-off jobs, and also to save on valuable storage space. This is ideal for any small woodwork shop or for the home hobbyist who needs to occasionally plane timber.

Features

  • 153mm width capacity

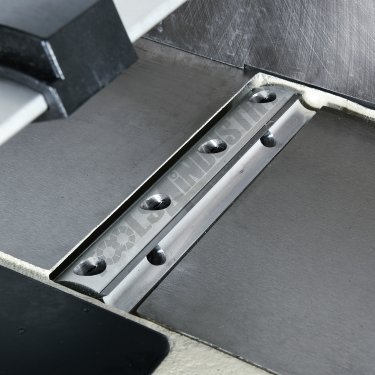

  • 2 x HSS blade cutter head
  • Cast iron table & fence
  • Cast aluminium body

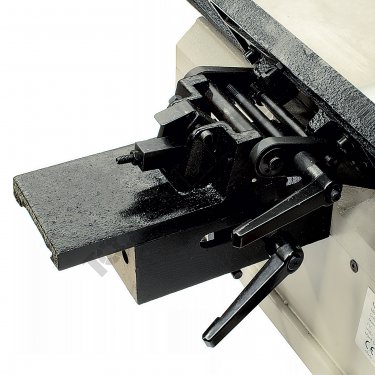

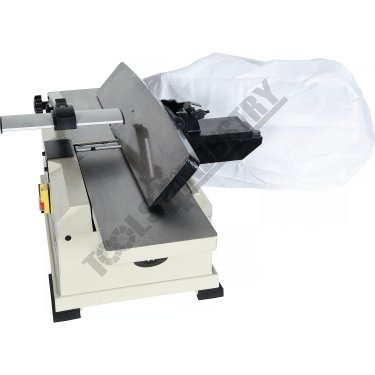

  • Adjustable tilting fence to 45˚

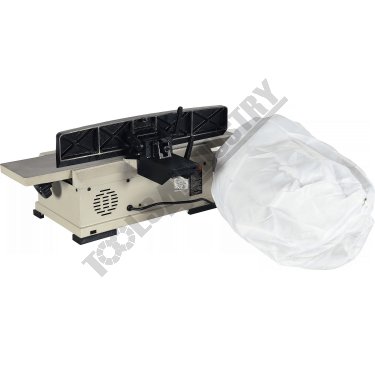

  • Built in fan with dust chute & collection bag
  • 10000rpm blade speed with 20000 cuts per minute

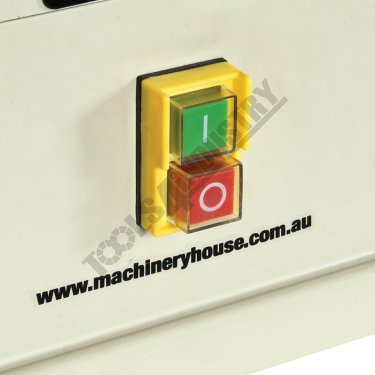

  • Magnetic safety power switch with stop button

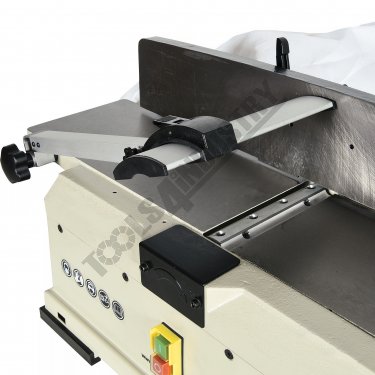

  • Aluminium blade cover with quick action lock
  • 3mm maximum depth of cut

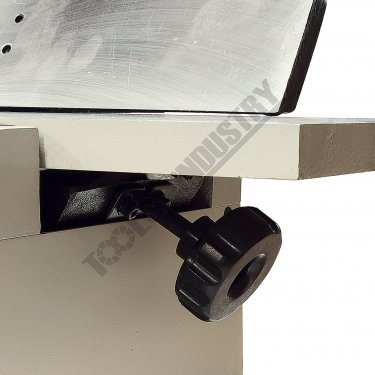

  • Adjustable in-feed table
  • Anti vibration rubber feet
  • 1.1kW / 1.5hp 240V motor

Specifications

ORDER CODEPJ-6B
MODEL153 / 6
Width Capacitymm / inch3
Maximum Depth of Cutmm730
Table Lengthmm340
Length of Infeed Tablemm347
Length of Outfeed Tablemm~
Rebatemm580 x 110
Fence Length x HeightmmHSS
Blade CutterType2
Blade QuantityNo.~
Cutter Block Diametermm10000
Cutter Block Speedrpm60
Dust Port Diametermm1.1 / 1.5
Motor PowerkW / hp240 / 10
Voltage / AmperageV / amp1150 x 650 x 320
Floor Space (W x D x H)mm40
Nett Weightkg
