| Code | W270 |
|---|---|
| Model | WE-100 |
| Weight (kg) | 28.4 |
| Weight (m3) | 0.202 |
| Weight (Freight) | 67.266 |
| Dimensions (cm) | 52 x 48 x 81 |

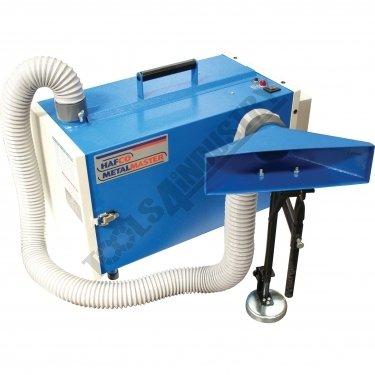

WE-100 Welding Fume Extractor
Description
Manufactured in TaiwanIdeal for extracting harmful welding fumes
Features
- Portable and light weight design
- 390 m3/hour
- 2 x 800W 240V motor, 2 speeds
- 5 layers of filters
- Captures up to 99.97% of 0.3 micron noxious fumes
- Includes 3 metre x 2-1/2" hose and magnetic base hood with arm support
Includes

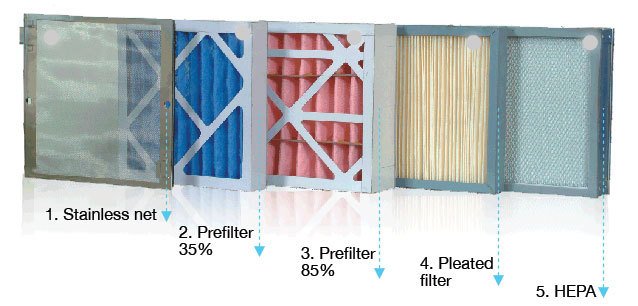

- Stage 1. Air enters from the extraction hood & passes through five layer of high efficiency filters
- Stage 2. The air passes through the first stainless steel layer net, which captures 95% of the sparks and steel chips
- Stage 3. Air then enters the 35% & 85% pre-filter for screening small particles and absorbs the oil
- Stage 4. The pleated filter captures up to 85% of the 1 micron particles & fine dust
- Stage 5. Finally the pleated HEPA filter cleans noxious fumes and captures up to 99.97% of the 0.3 micron particles.
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- Extraction Arm/Hose LengthMetre
- Extraction Arm Diametermm
- Air Flowm3/h
- Hepa Filter Aream2
- Main Unit Size (w x l x h)mm
- Voltage / AmperageV / A
- Motor PowerW
- Nett Weightkg
| ORDER CODE | WE-100 |
|---|---|
| MODEL | 3 |
| Extraction Arm/Hose LengthMetre | 63.5 |
| Extraction Arm Diametermm | ~ |
| Air Flowm3/h | ~ |
| Hepa Filter Aream2 | ~ |
| Main Unit Size (w x l x h)mm | 240 / 10 |
| Voltage / AmperageV / A | 800 x 2 |
| Motor PowerW | 28.4 |
| Nett Weightkg |
