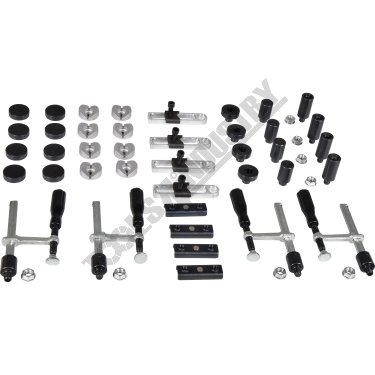

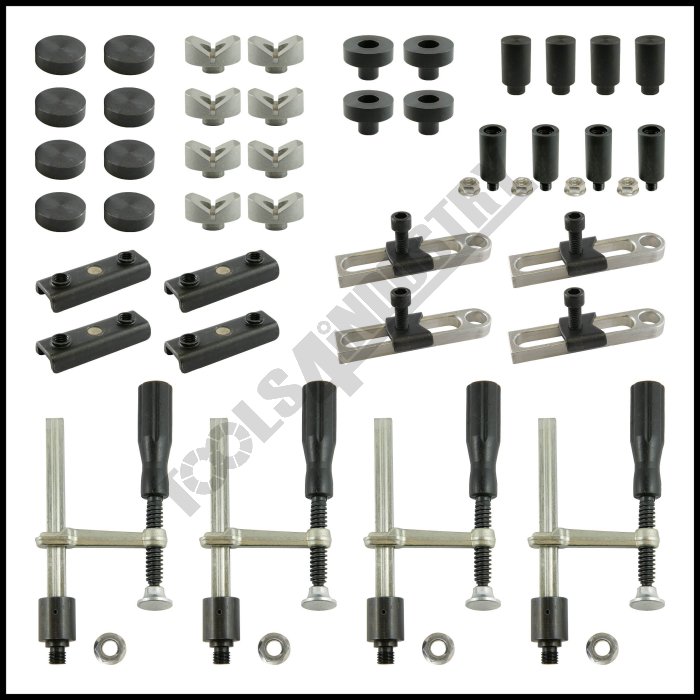

40 Piece Set

Threaded Magnetic Adaptor

Threaded Magnetic Adaptor Bottom View

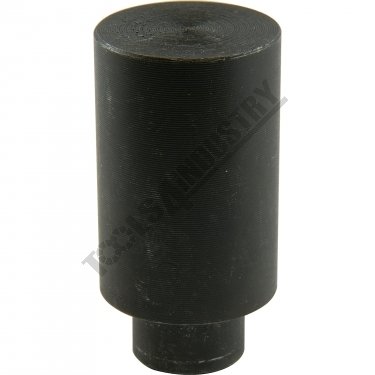

Insert Stop

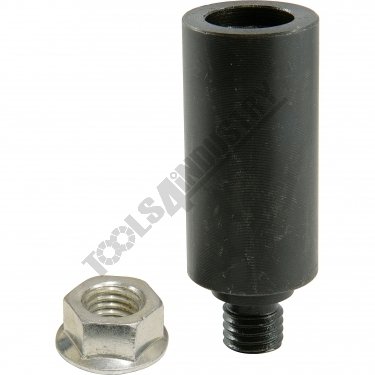

Positioning Stop

Positioning Stop Top View

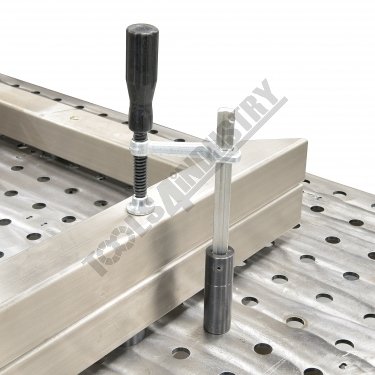

Shown Screwed into Threaded Riser

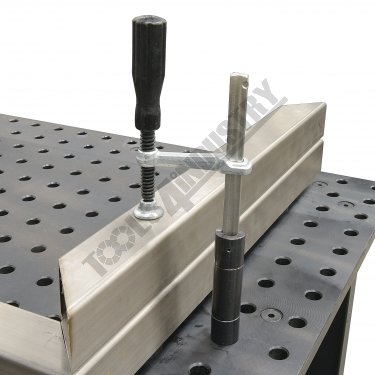

Shown Screwed into Threaded Riser with Optional Adaptor

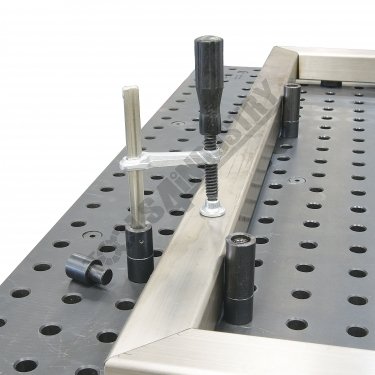

Shown Screwed into Optional Adaptor

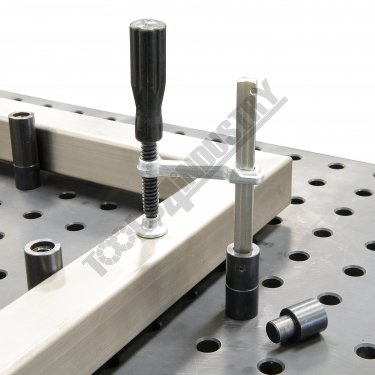

Shown Screwed into Optional Adaptor View2

Code	W08500
Model	SRK-40
Capacity	For tables from 4mm to 6.35mm in thickness
Weight (kg)	6
Weight (m³)	0.003
Weight (Freight)	6
Dimensions (cm)	28 x 18 x 6.5

Product Brochure

SRK-40 Square & Round Welding Table Clamp Kit For tables from 4mm to 6.35mm in thickness

Description

The ideal addition to your welding table, this kit is designed to suit welding tables with 16mm holes in a 50 x 50mm grid pattern & with a table thickness up to 6.35mm (1/4”). With a total of 40 pieces, it is affordable & easy to use for both round & square tubing applications to ensure consistent results time after time. This clamping system is perfect for the set-up of a multitude of welding tasks & aids in the ability to work comfortably, safely and efficiently for improved work quality and productivity.

Features

Compatible with welding tables with 16mm holes with a 50 x 50mm grid pattern
Compatible for tables from 4mm to 6.35mm in thickness
40-piece kit that all works in combination with each other to solve many clamping applications
Adaptable to suit flat, square & round material

Includes

4 x Weld Clamps
4 x Insert Stops
4 x Positioning Bars
8 x Round Material Rests

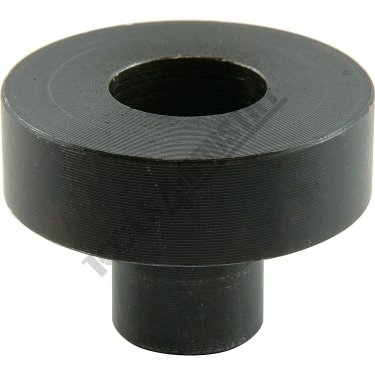

4 x Spacers
4 x Multi-Purpose Riser/Stops

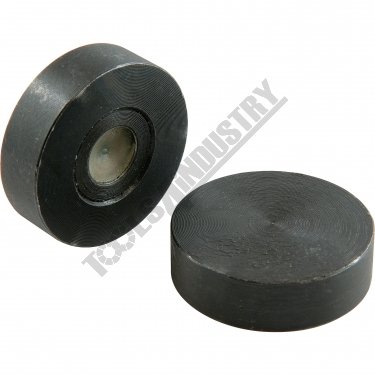

8 x Magnetic Rests
4 x Threaded Adaptors

Videos

Specifications

Compare 120 Products
ORDER CODE
MODEL
Type
Table Height with Standmm
Suits Table Size
Material Finish
Clamping Capacity
Locking Handle - Pivot Movement
Clamp Bar - Pivot Movement
Plunger Travelmm
Throat Depthmm
Openingmm
Size
Quantity Per PackNo.
Thread
Number of HolesNo.
Slot Lengthmm
Magnet Clamp Angledeg
Pull Forcekg
Clamping Forcekg
Suits
Over all Length
Nett Weightkg

W08500
SRK-40
Square & Round
Welding Table Clamp Kit
~
4mm to 6.35mm in thickness
~
~
~
~
~
~
~
~
40
~
~
~
~
~
~
~
~
5.3
