Code L055
Model L055
Capacity 55º Grade P30
Weight (kg) 0.02
Weight (m3) 0.000
Weight (Freight) 0.02
Dimensions (cm) 9.8 x 4 x 1.1
HAFCO

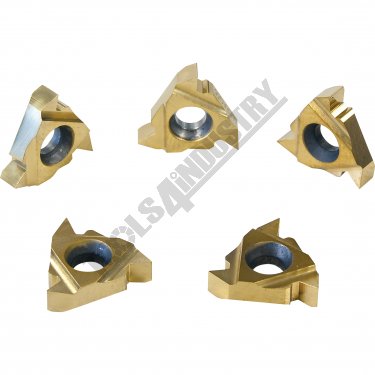

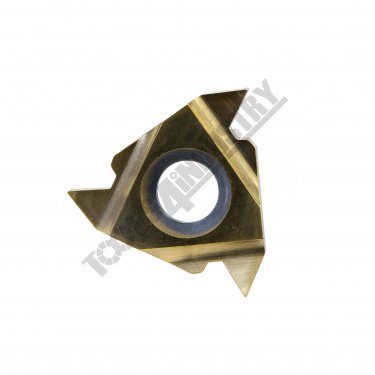

L055 16ERM Carbide Inserts - External Threading 55º Grade P30

Features

  • 55º Insert capacity (48-8TPI Imperial only)

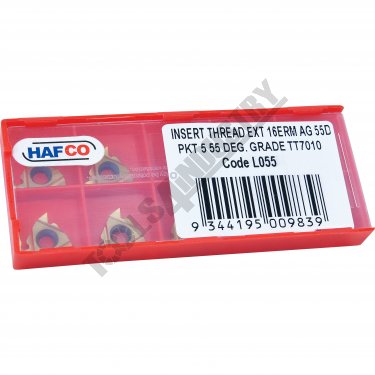

  • 5 x Inserts per pack
  • Grade: general purpose

Specifications

ORDER CODEExternal
Type16ERM-AG55
ISOTT7010
Grade55º

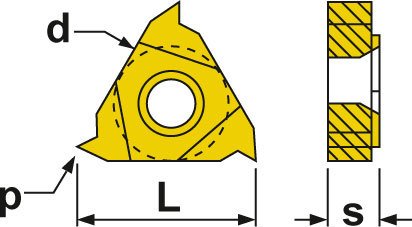

pdeg~
Pitch - Metricmm48 - 8
Teeth Per InchTPI16.5
Imm3.67
smm9.52
dmm
